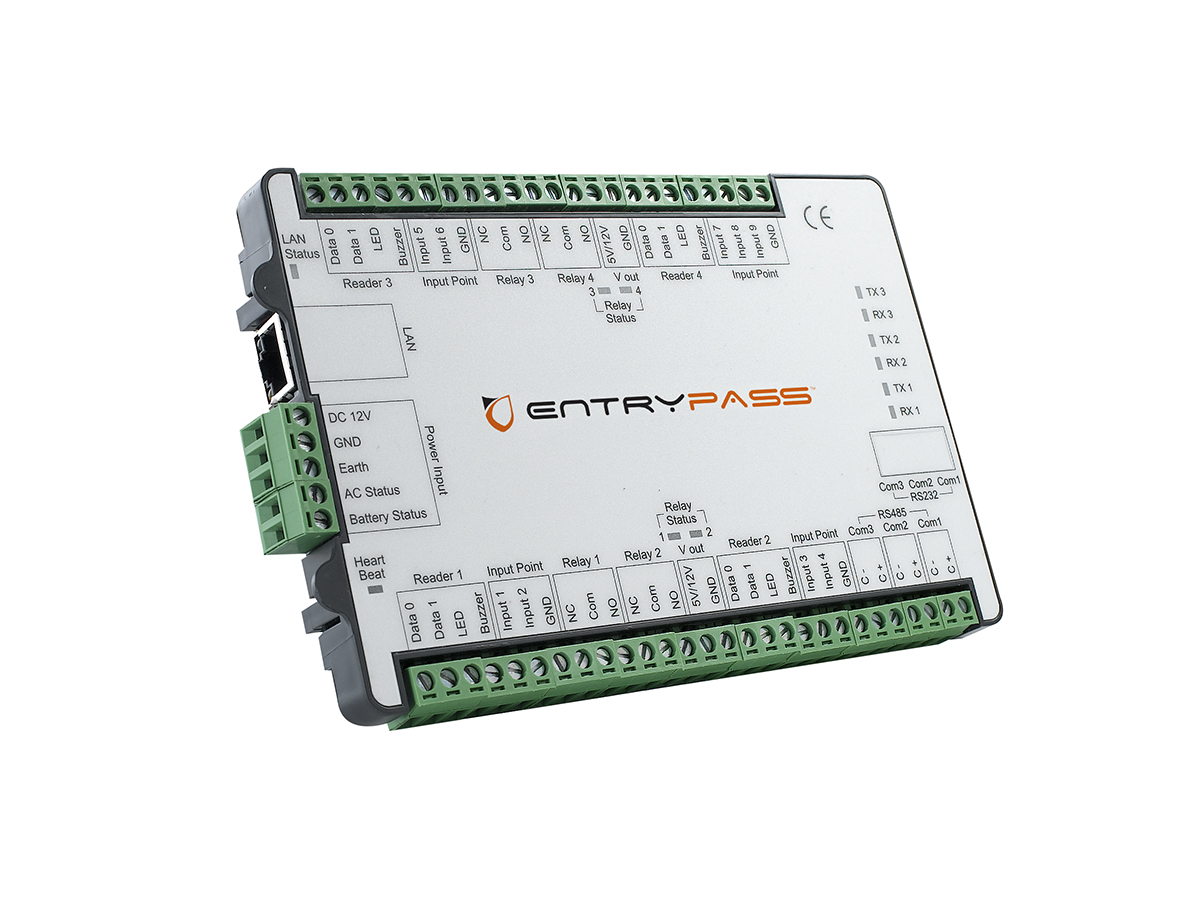

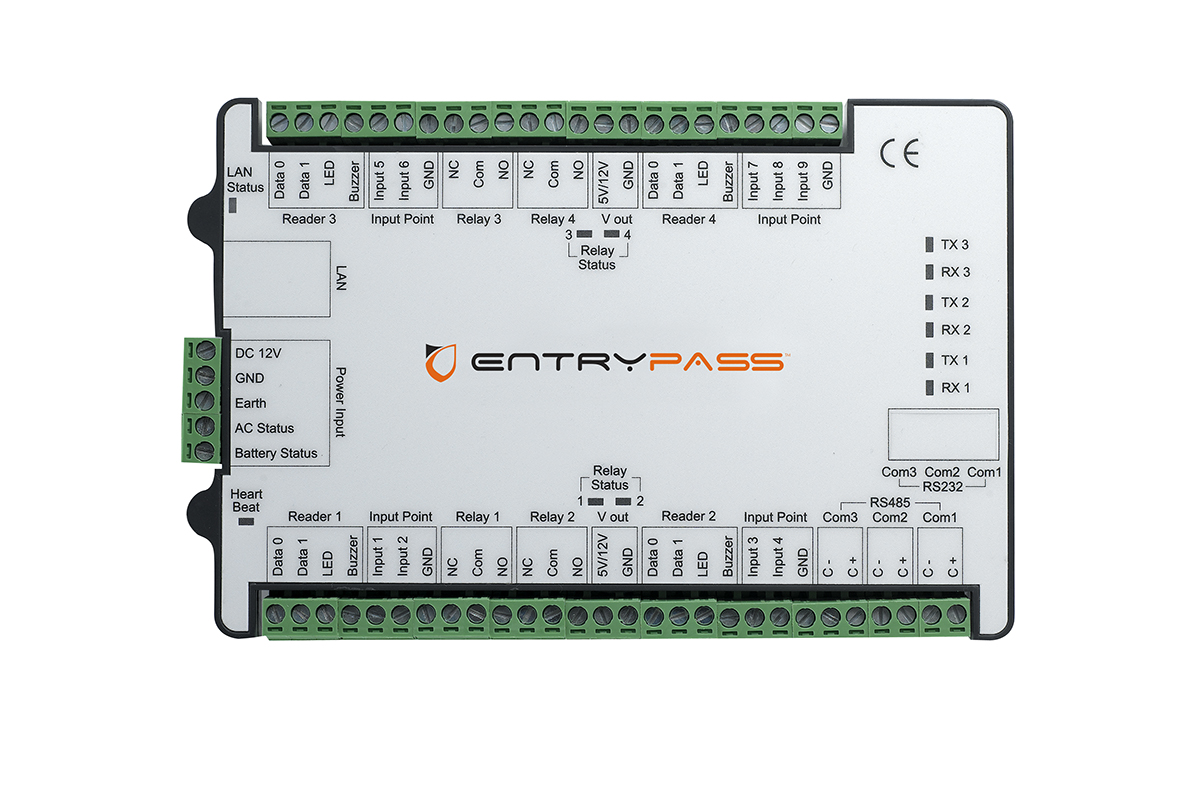

Bộ điều khiển kiểm soát cửa EP.N6400

prev next Bộ điều khiển kiểm soát cửa EP.N6400

  • Serial :  ASE001202
  • Hãng sản xuất:  Entrypass
  • Hàng trong kho:  Còn hàng
  • Giá :  Liên Hệ
  • Lượt truy cập: 2546
  • Số tiền để mua (Cho một sản phẩm):
  • Số lượng:
Từ Khóa:


Mô tả hàng hoá

Sản phẩm khác

Bài viết liên quan

Đánh giá

Hướng dẫn mua hàng

Bản đồ




Entrypass Active Networks are designed to enhance highly customized and rapid ‘real-time’ changes to the underlying network operation. Brilliantly engineered with all the power you need to enable code-sending, minus unnecessary buffer time with its distributed architecture capable of processing access demand at the edge level without leveraging at the server end.

4 In doors interlocking within the control panel, no external wiring is needed. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.
DSA empower system administrator to modify the factory preset card holder and event storage database whenever necessary. Result of such modification leads a more personalized usage of the control panel memory whenever needed.
Based on the latest HCB (Hybrid Compact Board), N6400 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. It features a 32bits Freescale ColdFire microcontroller running at 60MHz, this control panel can fulfill most demanding requirement in physical access control environment.
Feature Highlight
Unlimited Access Level
Onboard & Cross-Board Interlocking
User Counting (Card Holder / Car Park)
Reader Output Control
Dynamic Storage Allocation
Support 100,000 Users And 200,000 Event MemorySupport Single Door / 2 Doors / 4 Doors
Support Dynamic Reader Location
Support Car Park Mode
Compatible with various reader technologies
ActiveTransmit & ActiveDownload
Peer To Peer Global Anti-Passback
Configurable Digital / Supervised inputs (8)
MCU 32bits @ 60MHz
Memory 256K Flash Memory
32K SRAM (Buffer)
64Mbits Non-Volatile SPI Flash Memory (Storage)
Card holder 100,000
Event Transaction 200,000
Digital/Supervise Inputs 8, User configurable
(Door Sensor/Request-To-Exit/Fire Input/General Purpose)
Digital Output Max. 4 Dry contact Relay
Network Communication Port 1 - RJ-45 Self-Negotiate 10/100mbps
Power Protection Resettable Fuse - 2.5A
Surge Protection TVS - Up to 15KVA
Onboard LED Control Power / Communication / LAN / Event / Error
AC Fail Monitoring Yes
Battery Monitoring Yes (Firmware threshold control to shutdown control panel)
External Short Circuit Protection At readers
Backup Battery Yes, Apply to RTC only
