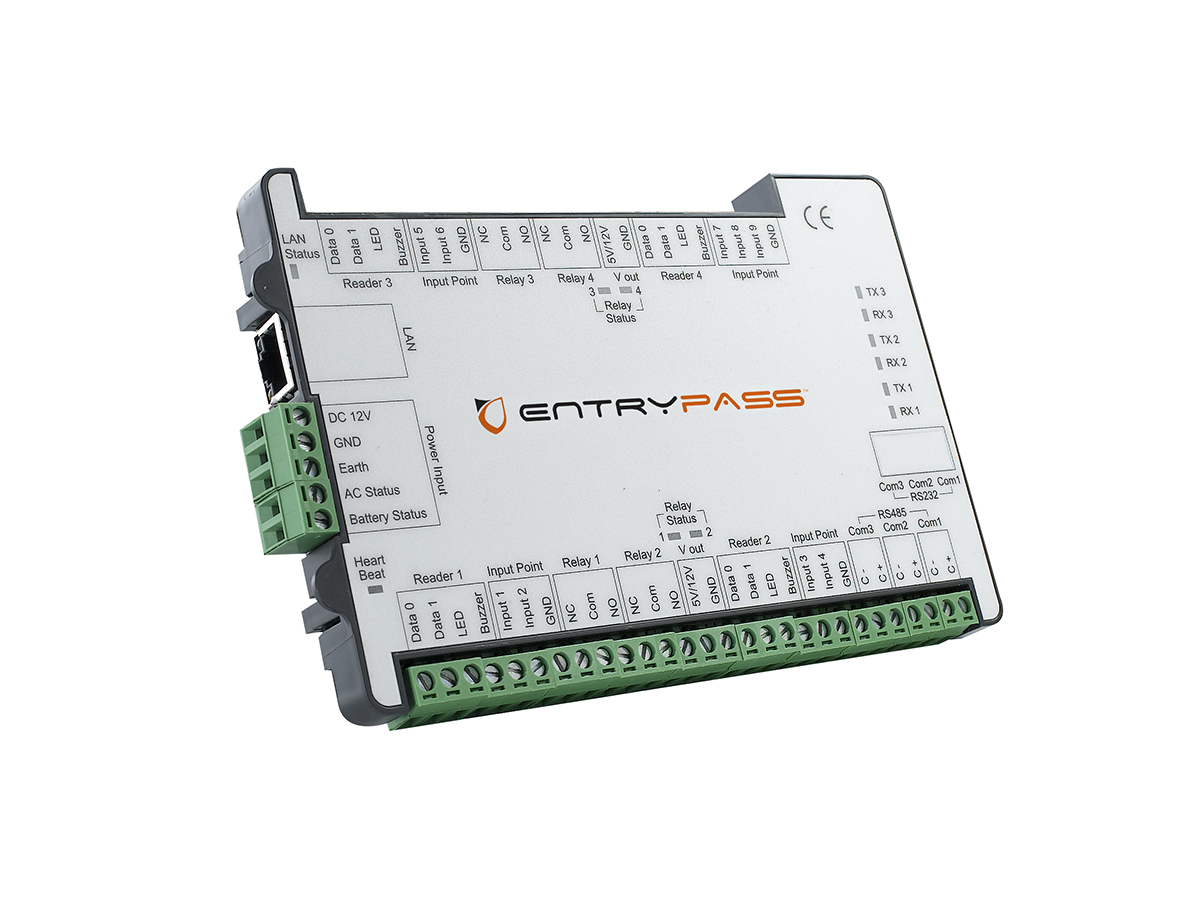

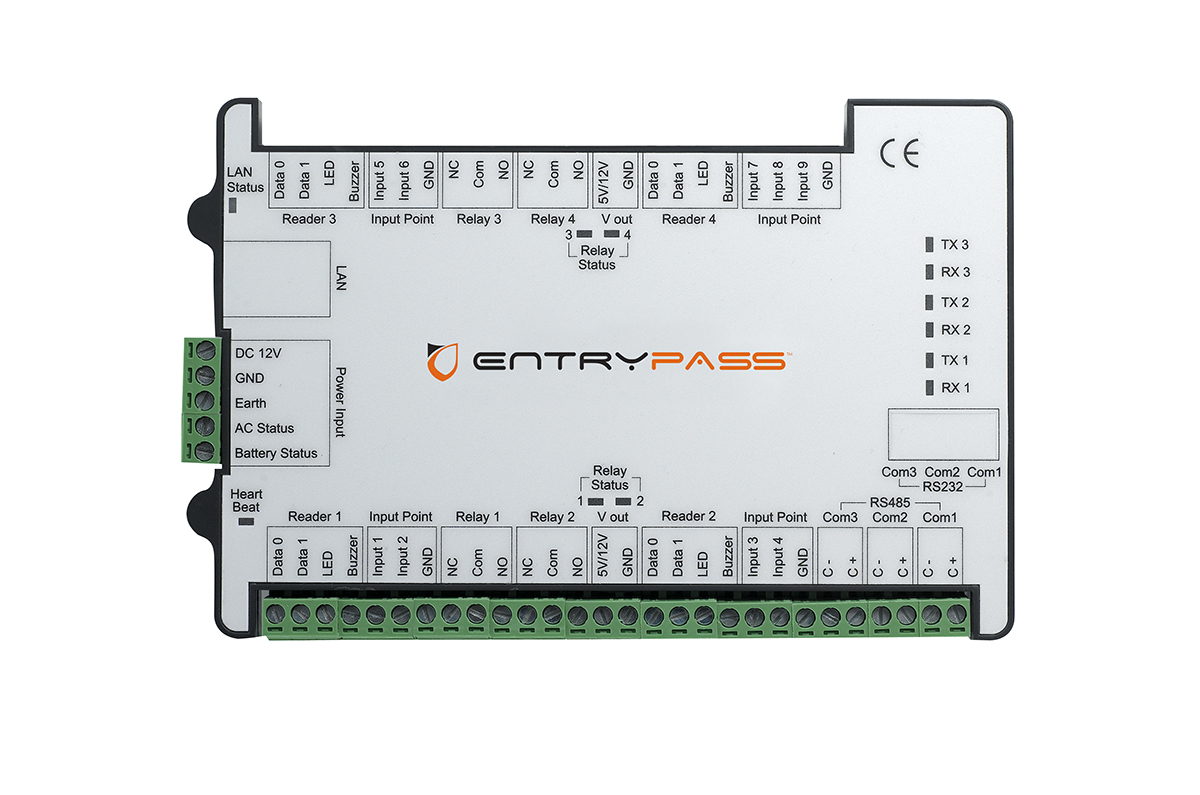

Bộ điều khiển kiểm soát cửa EP.N5150

prev next Bộ điều khiển kiểm soát cửa EP.N5150

  • Serial :  ASE001205
  • Hãng sản xuất:  Entrypass
  • Hàng trong kho:  Còn hàng
  • Giá :  Liên Hệ
  • Lượt truy cập： 2913
  • Số tiền để mua (Cho một sản phẩm)：
  • Số lượng：
Từ Khóa：



Mô tả hàng hoá

Sản phẩm khác

Bài viết liên quan

Đánh giá

Hướng dẫn mua hàng

Bản đồ







EntryPass Active Networks are designed to enhance highly customized and rapid ‘real-time’ changes to the underlying network operation. Brilliantly engineered with all the power you need to enable code-sending, minus unnecessary buffer time with its distributed architecture capable of processing access demand at the edge level without leveraging at the server end.

DOOR INTERLOCKING

2 In doors interlocking within the control panel, no external wiring is needed. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.

DYNAMIC STORAGE ALLOCATION (DSA)
Rather than keeping the event transaction in the memory awaiting for the host server to poll, HCB based network control panel actively transmit the event back as it occurred. This asynchronous communication also reduces the bandwidth requirement significantly when operates over the network.

HIGH PERFORMANCE
Based on the latest HCB (Hybrid Compact Board), N5100 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. It features a 32bits Freescale ColdFire microcontroller running at 60MHz, this control panel can fulfill most demanding requirement in physical access control environment.

Feature Highlight
Quick Terminal Plug-in Connectors
Firmware Upgrade via Server
Reader Output Control
Onboard & Cross-Board Door Interlocking
Support 5,000 Users And 10,000 Event MemorySupport Single / 2-In doors
Support Car Park Mode
Compatible with various reader technologies
ActiveTransmit & ActiveDownload
Peer To Peer Global Anti-Passback
Configurable Digital / Supervised inputs (4)

HARDWARE DESCRIPTION
MCU 32bits @ 60MHz
Memory 256K Flash Memory
32K SRAM (Buffer)
64Mbits Non-Volatile SPI Flash Memory (Storage)
Card holder 5,000
Event Transaction 10,000
Digital/Supervise Inputs 4, User configurable
(Door Sensor/Request-To-Exit/Fire Input/General Purpose)
Digital Output Max. 2 Dry contact Relay
Network Communication Port 1 - RJ-45 Self-Negotiate 10/100mbps
Power Protection Resettable Fuse - 2.5A
Surge Protection TVS - Up to 15KVA
Onboard LED Control Power / Communication / LAN / Event / Error
AC Fail Monitoring Yes
Battery Monitoring Yes (Firmware threshold control to shutdown control panel)
External Short Circuit Protection At readers
Backup Battery

Yes, Apply to RTC only
